Description
Low speed permanent magnet direct-drive generator. Do not need the gearbox. The turbine connects with the PMG directly, simplifying the structure and improving the system performance.
The gearbox reliability is not high. The system reliability can be improved if there is no gearbox. That means less maintenance, better utilization, longer lifespan for the system.
The efficiency is high. The system efficiency can be improved by 20% when you use PM generator without gearbox.
The PMG can work efficiently throughout the whole speed range. Less heat when working. The PMG can use natural air cooling.
Low start up torque, the system can output power at low speed.
The PMG works at low speed, low noise, more safe and reliable, the lifespan of the bearings can be longer.
The voltage, speed ,power of the generator can be customized. The shape can also be changed, using spine shaft, dual shaft, front edge or other output ways.
Our main exporting countries:USA, France, Canada, Australia, Norway, Germany, Denmark, Italy, Spain, UK, Latvia, Romania, Korea, Iran, India, Pakistan, Thailand, Malaysia, Mauritius, Kenya, Brazil
The gearbox reliability is not high. The system reliability can be improved if there is no gearbox. That means less maintenance, better utilization, longer lifespan for the system.
The efficiency is high. The system efficiency can be improved by 20% when you use PM generator without gearbox.
The PMG can work efficiently throughout the whole speed range. Less heat when working. The PMG can use natural air cooling.
Low start up torque, the system can output power at low speed.
The PMG works at low speed, low noise, more safe and reliable, the lifespan of the bearings can be longer.
The voltage, speed ,power of the generator can be customized. The shape can also be changed, using spine shaft, dual shaft, front edge or other output ways.
Our main exporting countries:USA, France, Canada, Australia, Norway, Germany, Denmark, Italy, Spain, UK, Latvia, Romania, Korea, Iran, India, Pakistan, Thailand, Malaysia, Mauritius, Kenya, Brazil

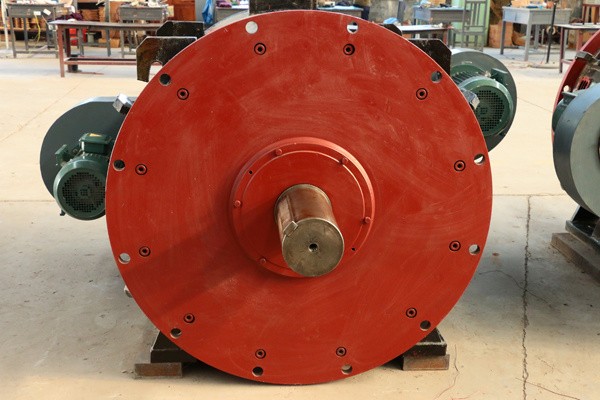

1500kw150rpm690V PMG
Technical Parameters
|
No. |
Parameter |
Units |
Data |
|
1 |
Rated output power 功率 |
KW |
1500 |
|
2 |
Rated speed 转速 |
RPM |
150 |
|
3 |
Rated output voltage 电压 |
VAC |
690 |
|
4 |
Rated current 电流 |
A |
1255 |
|
5 |
Rated frequency 频率 |
Hz |
25 |
|
6 |
Poles 极数 |
|
20 |
|
7 |
Efficiency at rated speed 效率 |
|
94.7% |
|
8 |
Winding type 接法 |
|
Y |
|
9 |
Insulation resistance 绝缘电阻 |
|
20 MΩ |
|
10 |
Insulation 绝缘等级 |
|
H class |
|
11 |
Ratedtorque 满载扭矩 |
Nm |
100080 |
|
12 |
Start torque 启动扭矩 |
Nm |
1800 |
|
13 |
Temperature rise 工作温度 |
°C |
90 |
|
14 |
Max.working temperature 极限允许温度 |
°C |
130 |
|
15 |
Housing material 外壳材料 |
|
Steel |
|
16 |
Shaft material 轴料 |
|
Cast steel |
|
17 |
Weight 重量 |
Kg |
6680 |
|
18 |
Design lifetimes 年限 |
Year |
20 |
