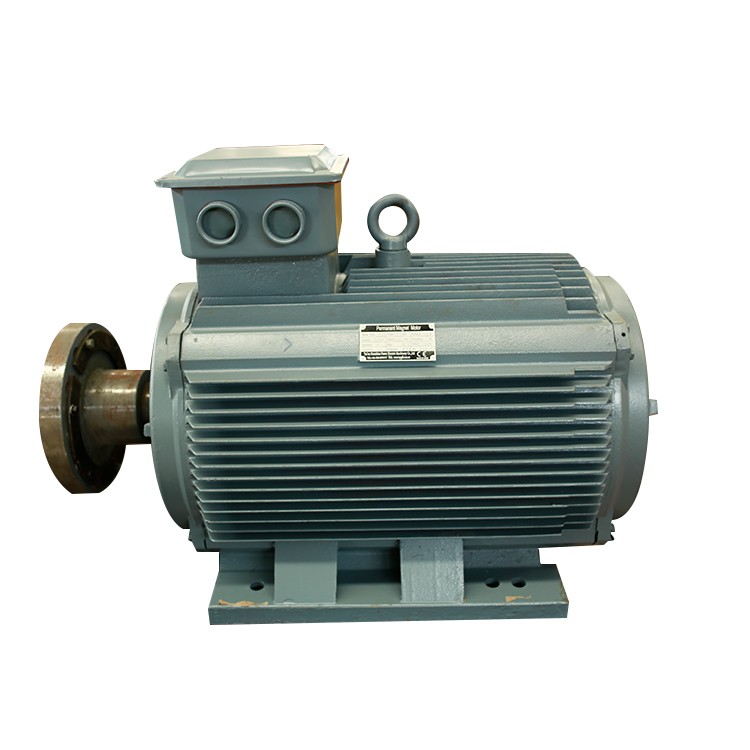

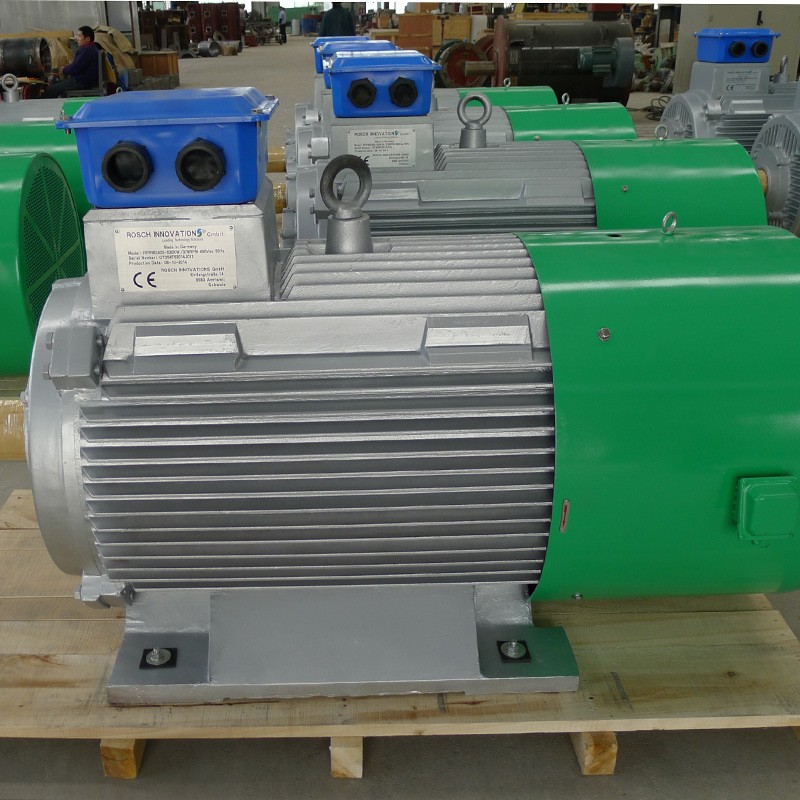

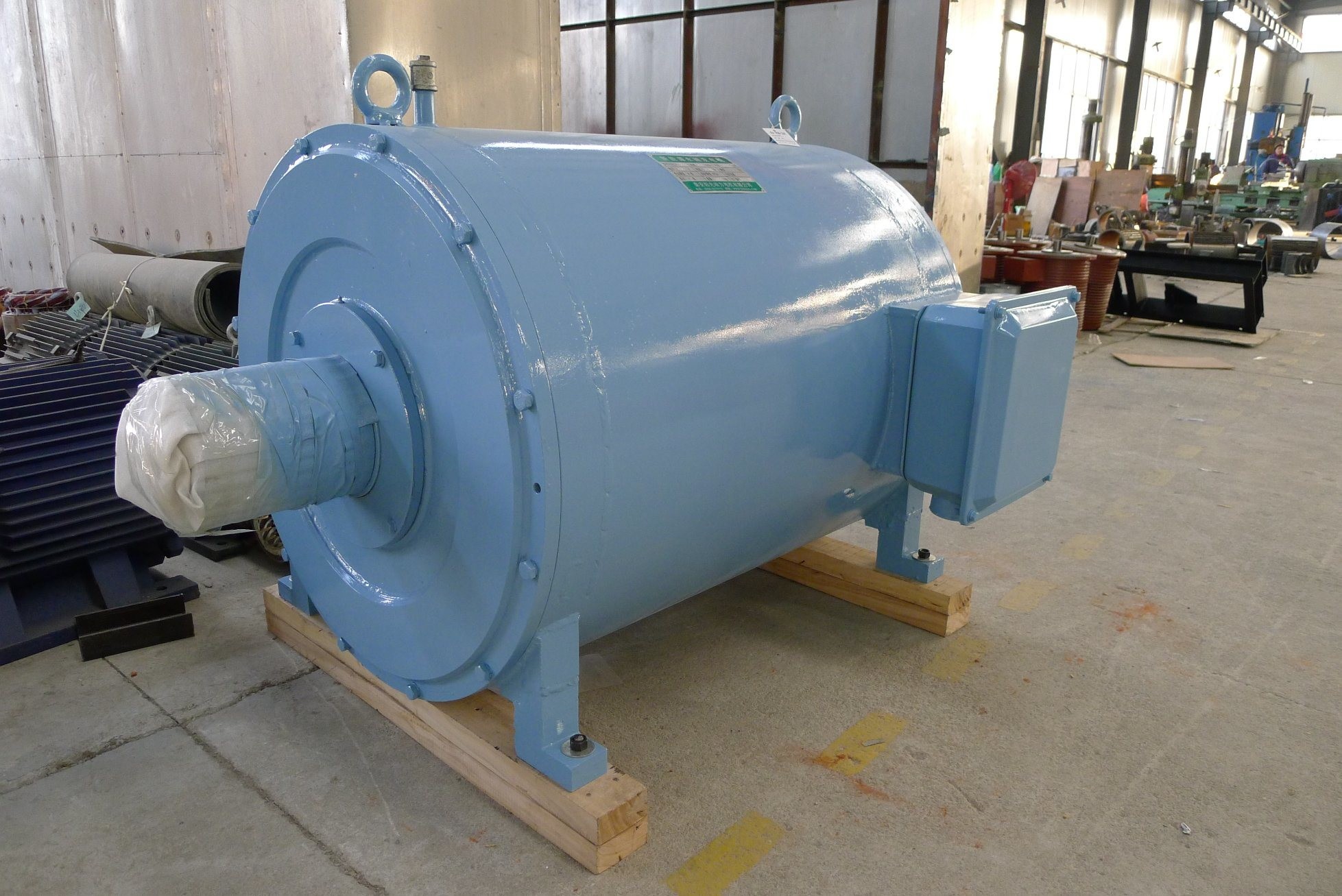

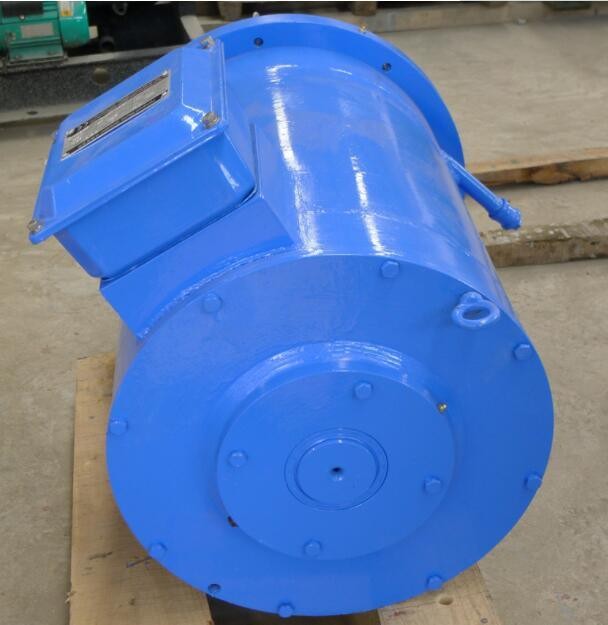

Description
Permanent Magnet Generator, We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), speed from 20rpm-6000rpm
Please contact us for more detail informations.
Features of permanent magnet generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
No. Parameter Units Data
1 Rated output power KW 80
2 Rated speed RPM 1500
3 Rated output voltage VAC 690
4 Rated current A 69
5 Rated frequency HZ 50
6 Poles 4
7 Efficiency at rated speed >95.6%
8 Winding type Y
9 Insulation resistance 50 MΩ
11 Insulation H class
12 Rated torque Nm 515
13 Start torque Nm <12
14 Temperature rise °C 90
15 Max.working temperature °C 130
16 Shaft material Steel
17 Bearing SKF
18 Weight Kg 480
Please contact us for more detail informations.
