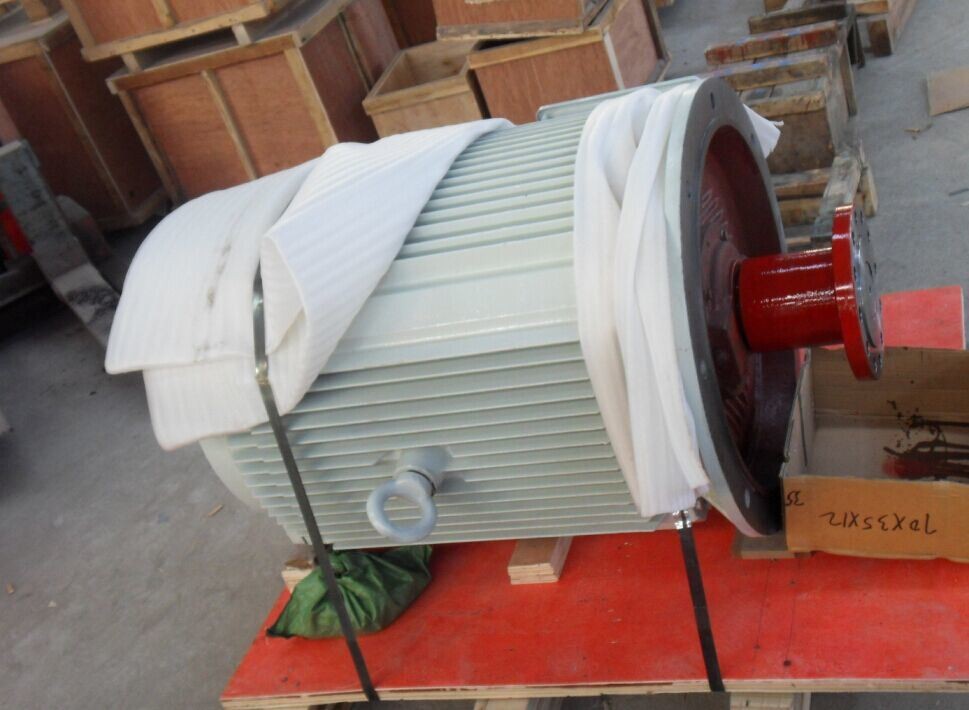

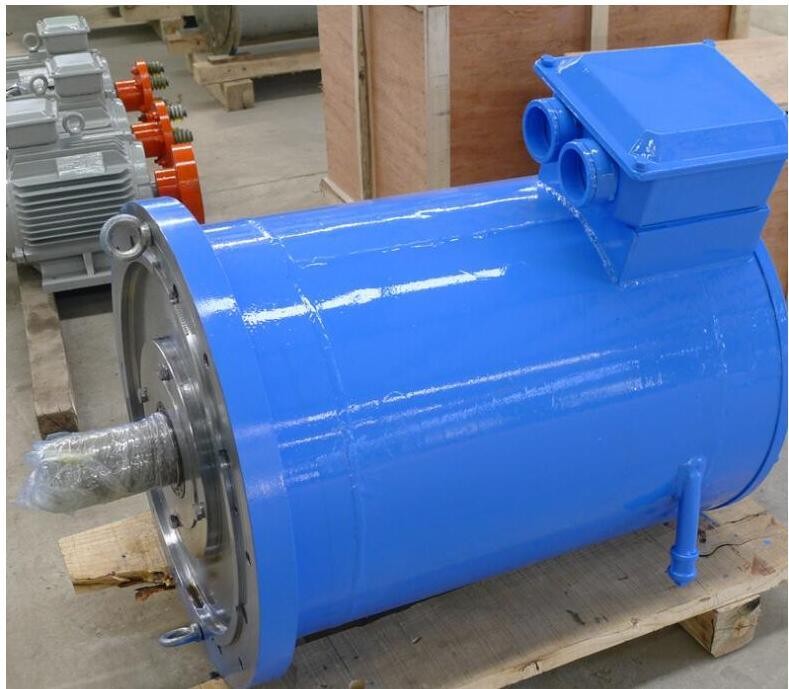

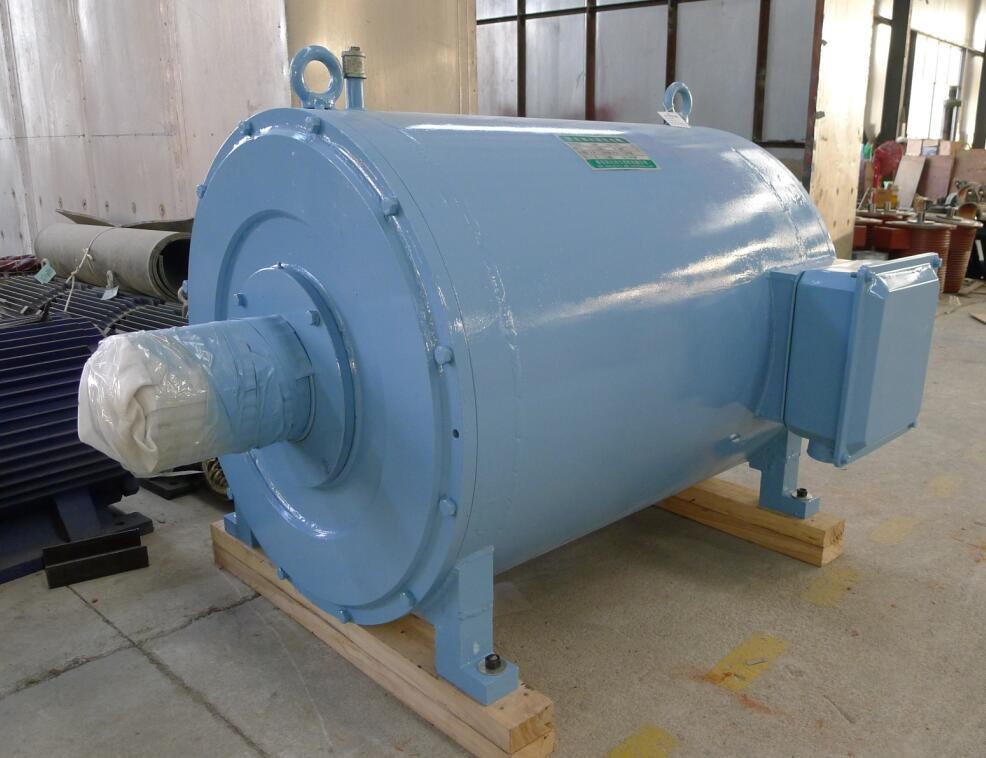

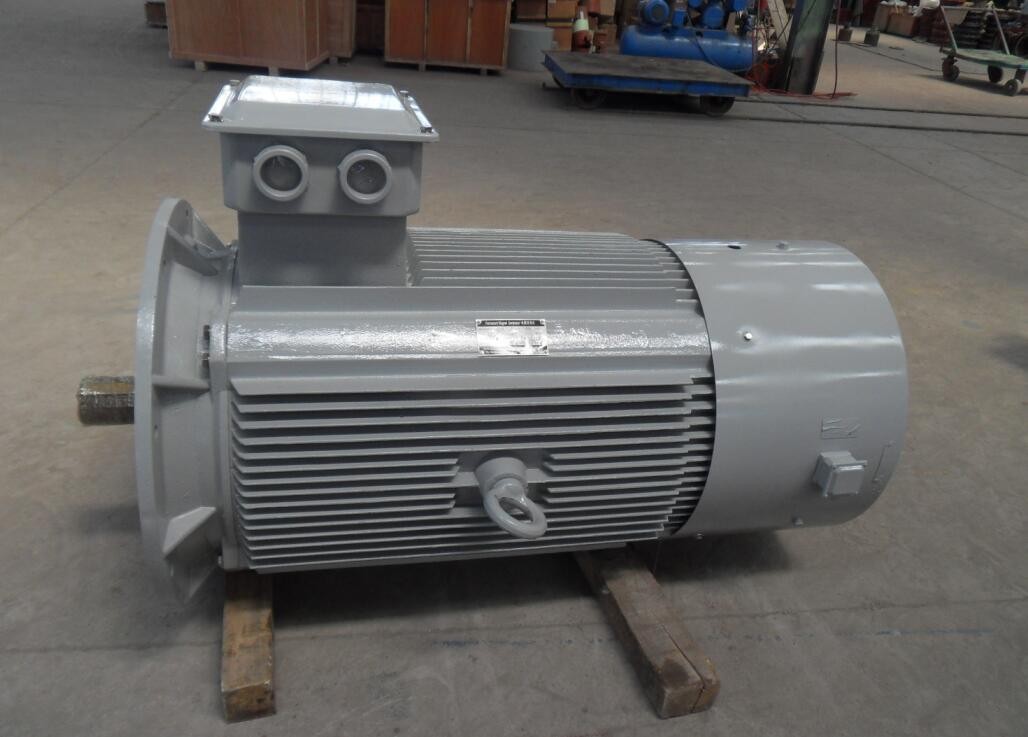

Micro Hydro Power Water Turbine Permanent Magnet Generator (1kw-3000kw) 60Hz

Inquiry Send Email

Description

low speed Permanent Magnet Generator use for hydro turbine, wind turbine, gas engine and so on
Power AC voltage speed poles frequency Rated torque current efficiency weight
2.5kw 220V 327.6rpm 22 60Hz 73Nm 6.7A 93.8% 72kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
5 kw 220V 327.6rpm 22 60Hz 146Nm 13.A 93.8% 122kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
8 kw 220V 300rpm 24 60Hz 255Nm 21A 93.8% 186kg
16 kw 220V 600rpm 12 60Hz 255Nm 42A 93.8% 186kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
12 kw 220V 300rpm 24 60Hz 382Nm 32A 93.8% 260kg
24 kw 220V 600rpm 12 60Hz 382Nm 64A 93.8% 260kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
15 kw 220V 257rpm 28 60Hz 557Nm 39.5A 93.8% 320kg
30 kw 220V 514rpm 14 60Hz 557Nm 79A 93.8% 320kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
20 kw 220V 225rpm 32 60Hz 1020Nm 52.4A 93.8% 420kg
40 kw 220V 375rpm 16 60Hz 1020Nm 104.9A 93.8% 420kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
30 kw 220V 225rpm 32 60Hz 1273Nm 78.7A 93.8% 720kg
60 kw 220V 450rpm 16 60Hz 1273Nm 157A 93.8% 720kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
35 kw 220V 150pm 48 60Hz 2228Nm 92A 93.8% 1260kg
70 kw 220V 300rpm 24 60Hz 2228Nm 184A 93.8% 1260kg
105 kw 220V 450rpm 16 60Hz 2228Nm 276A 93.8% 1260kg
140 kw 220V 600rpm 12 60Hz 2228Nm 367A 93.8% 1260kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
80 kw 220V 150pm 48 60Hz 5093Nm 209A 93.8% 1680kg
160 kw 220V 300rpm 24 60Hz 5093Nm 418A 93.8% 1680kg
200 kw 220V 450rpm 16 60Hz 4244Nm 524A 93.8% 1680kg
320 kw 220V 600rpm 12 60Hz 5093Nm 839A 93.8% 1680kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
100 kw 220V 150pm 48 60Hz 6366Nm 262A 93.8% 2800kg
200 kw 220V 300rpm 24 60Hz 6366Nm 524A 93.8% 2800kg
300 kw 220V 450rpm 16 60Hz 6366Nm 786A 93.8% 2800kg


200kw 600kw Low Speed Hydro Turbine Permanent Magnet Generator 60Hz
