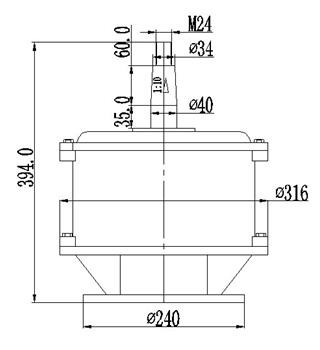

Description
generator type: synchronous permanent magnet 3 phase AC
• magnetic steel material:38SH NdFeB • class of insulation:B
• housing material: cast iron • shaft material: 45# steel
• rated rotate speed:80 RPM • rated voltage: 12VAC/24VAC
• grade of protection: IP54 • weight:45kg
• start up torque:0.9Nm • rated torque at rated speed:66.6Nm
|
300W 24V Vertical Generator Design Data |
|||||
|
rpm |
14 |
30 |
47 |
63 |
80 |
|
no-load voltage（V） |
9.1 |
19.6 |
30.2 |
40.7 |
51.26 |
|
load voltage(V) |
5.5 |
11.4 |
16.6 |
21 |
25 |
|
load current (A) |
1.67 |
3.44 |
5.0 |
6.4 |
7.39 |
|
output power(W) |
16 |
68 |
144 |
233 |
320 |
|
torque (Nm) |
25 |
38 |
51 |
60.6 |
66.5 |
Remark: The design load electric resistance of above data is 1.92 Ω.
