Description

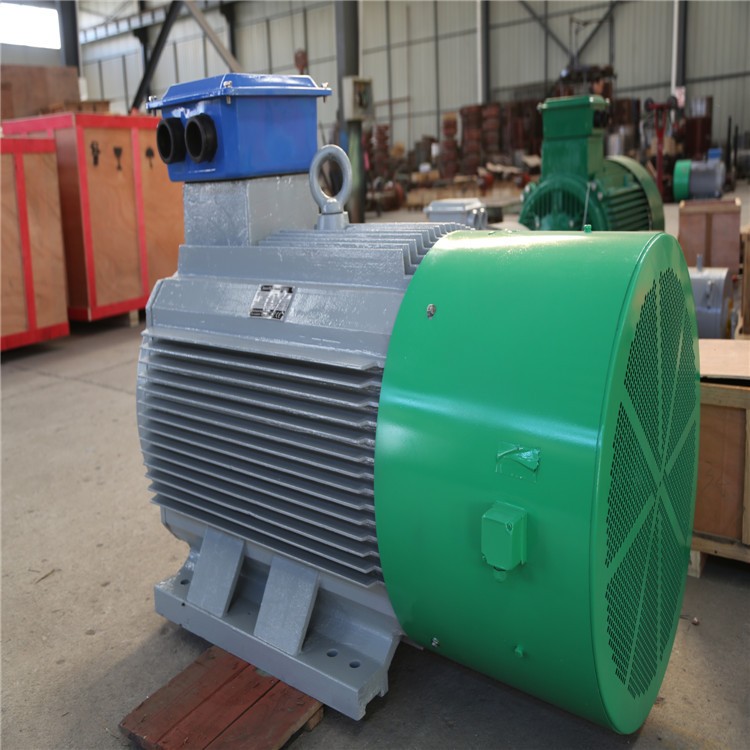

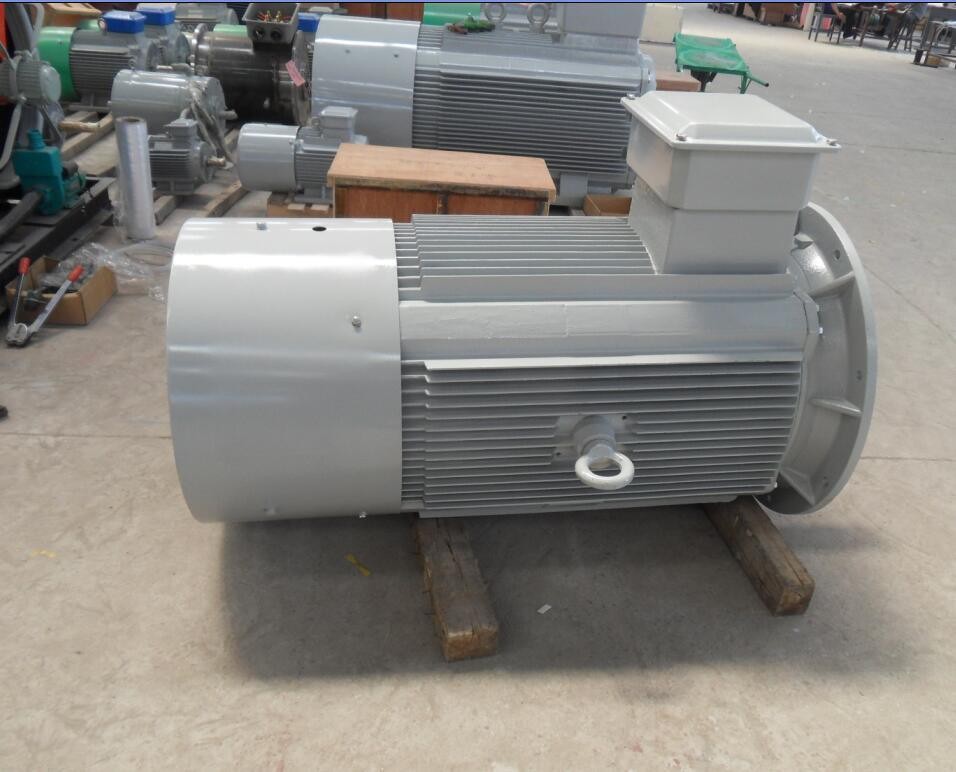

Low speed permanent magnet direct-drive generator.
Do not need the gearbox. The turbine connects with the PMG directly, simplifying the structure and improving the system performance. The PMG can output 50Hz directly at rated speed.
The gearbox reliability is not high. The system reliability can be improved if there is no gearbox. That means less maintenance, better utilization, longer lifespan for the system.
The efficiency is high. The system efficiency can be improved by 20% when you use PM generator without gearbox
The PMG can work efficiently throughout the whole speed range. Less heat when working. The PMG can use natural air cooling, forced air cooling or water cooling.
Low start up torque, the system can output electrical power at low speed.
The PMG works at low speed, low noise, more safe and reliable, the lifespan of the bearings can be longer.
The voltage, speed ,power of the generator can be customized. The shape can also be changed, using spine shaft, dual shaft, front edge or other output ways.
Do not need the gearbox. The turbine connects with the PMG directly, simplifying the structure and improving the system performance. The PMG can output 50Hz directly at rated speed.
The gearbox reliability is not high. The system reliability can be improved if there is no gearbox. That means less maintenance, better utilization, longer lifespan for the system.
The efficiency is high. The system efficiency can be improved by 20% when you use PM generator without gearbox
The PMG can work efficiently throughout the whole speed range. Less heat when working. The PMG can use natural air cooling, forced air cooling or water cooling.
Low start up torque, the system can output electrical power at low speed.
The PMG works at low speed, low noise, more safe and reliable, the lifespan of the bearings can be longer.
The voltage, speed ,power of the generator can be customized. The shape can also be changed, using spine shaft, dual shaft, front edge or other output ways.
| Main specifications - PMG | |
| Rated power (kW) | 2500kW |
| Rated speed (rpm) | 600rpm |
| Rated torque (Nm): | 41600Nm |
| Rated voltage (V): | 1140VAC |
| Rated current (A): | 1266A |
| Startup torque (Nm) | <630Nm |
| Pairs of poles | 6 |
| Frequency (Hz) | 60Hz |
| Phase | 3-phase |
| Insulation Class: | H |
| Protection Class | IP54 |
| Efficiency(%) | 96% |
| Power factor | 1 |
| Cooling | Water cooling |

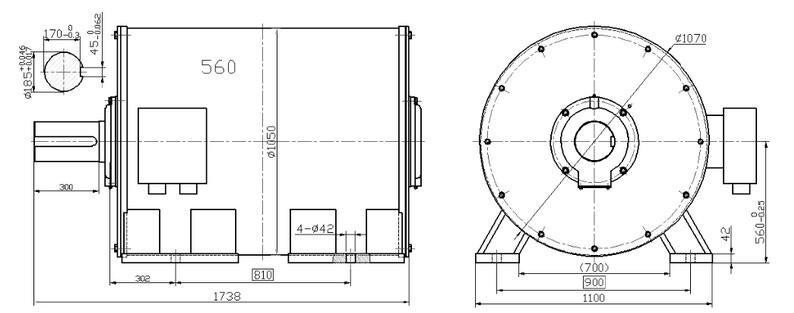

| Mechanical specifications | |
| Installation | Horizontal |
| Frame size | Y560 |
| Weight (Kg) | 7000kg |
| Materials | |
| Shaft material | Steel |
| Bearings | Steel |
| Housing material | Steel |
| Winding material | Copper |
| Winding temperature level | 180ºC |
| Magnet | NdFeB |
| Magnet temperature level | 150ºC |
| Core | High quality cold rolled silicon steel sheet |
