Description

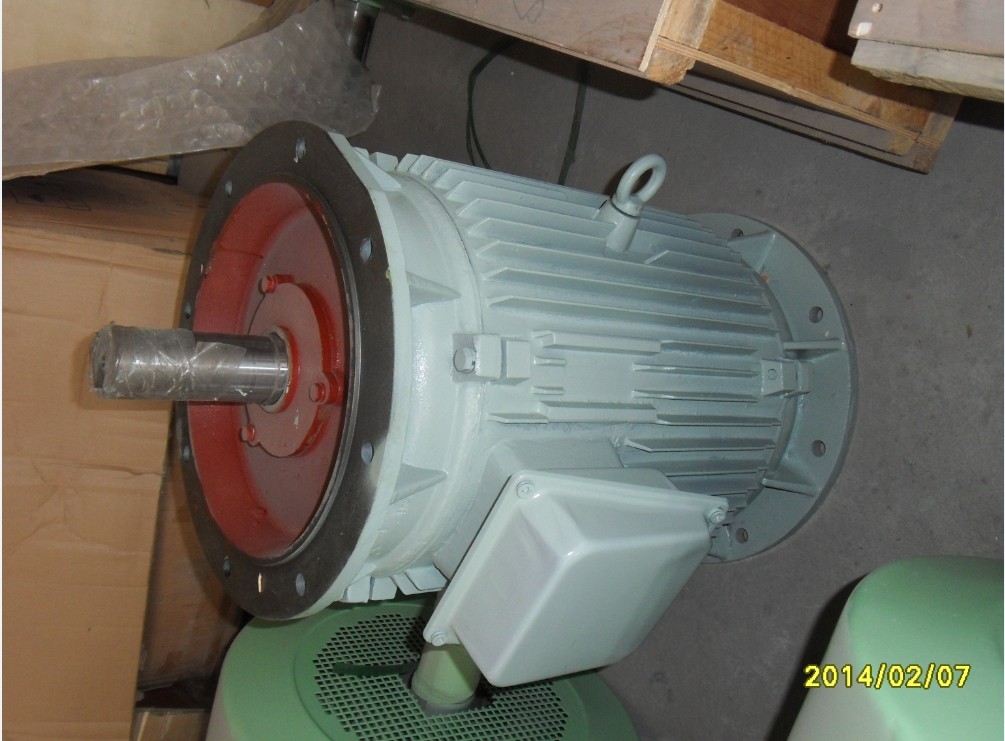

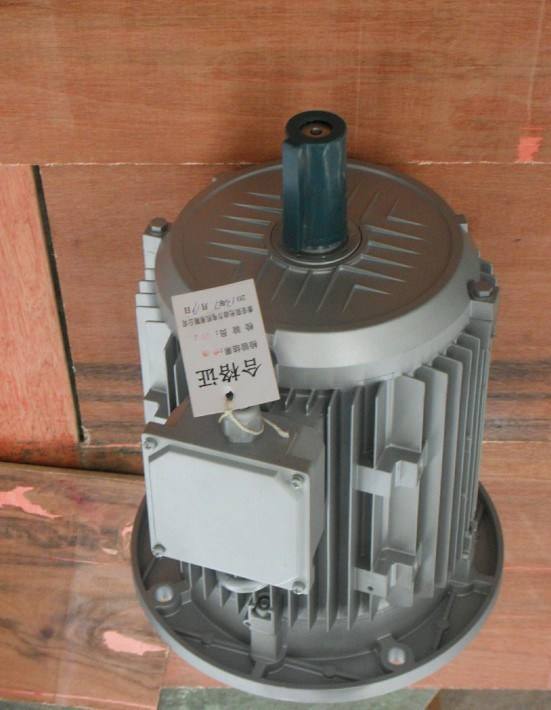

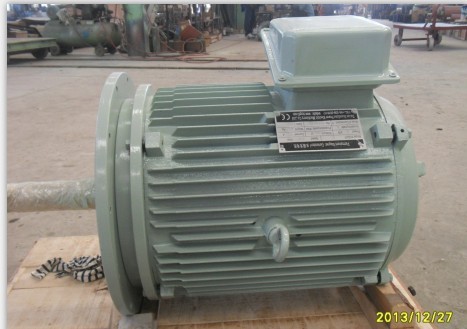

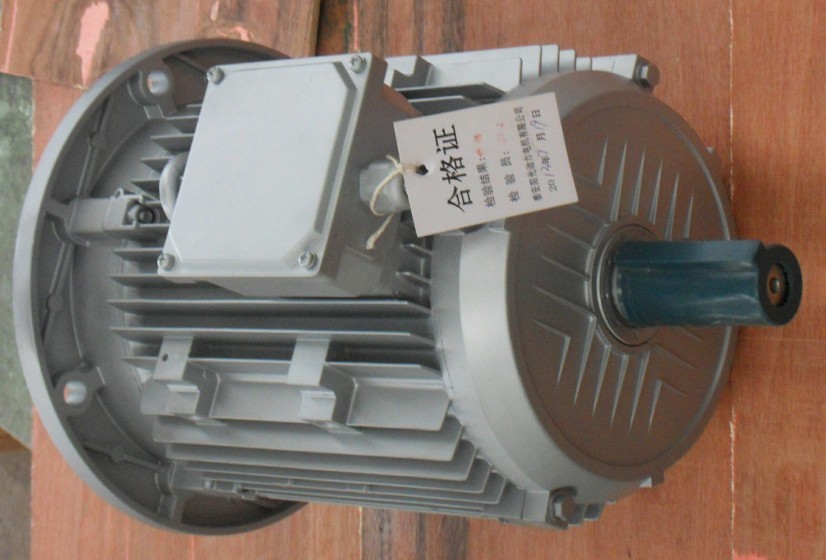

We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), speed from 30rpm-6000rpm, output voltage and speed can customize according your request
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
| Power(KW) | AC voltage(V) | speed(RPM) | poles | frequency | Rated torque(NM) | Start torque(NM) | current(A) | efficiency | weight |
| 8 | 220 | 125 | 28 | 29 | 611.2 | 12.2 | 22.6 | 93.80% | 300 |
| 4 | 48 | 60 | 28 | 14 | 636.7 | 12.7 | 51.7 | 93.80% | 260 |
| 20 | 400 | 273 | 22 | 50 | 699.6 | 14.0 | 31.0 | 93.80% | 260 |
| 30 | 400 | 428 | 14 | 50 | 669.4 | 13.4 | 46.6 | 93.80% | 260 |
