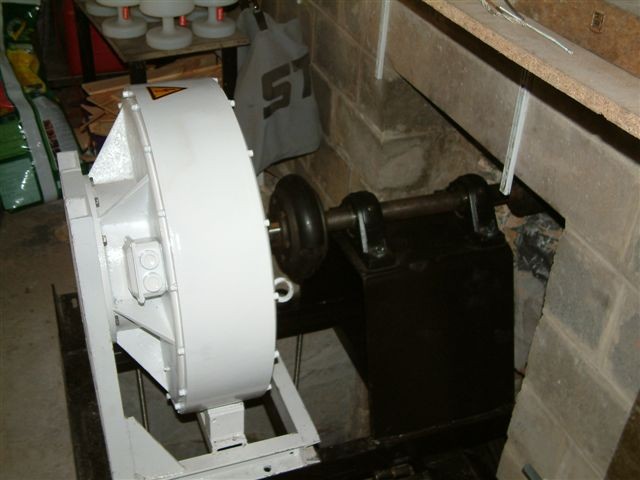

Description
generator style: permanent magnetism 3 phase AC
• Magnetic steel material:38SH NdFeB • Class of insulation:B
• Case material:cast iron • Grade of Protection: IP54
• rated rotate speed:50RPM
• rated voltage: 220VAC/240VAC/360VAC/380VAC
• weight:467kg
• start up torque :22.56Nm
• rated torque at 125rpm:1267Nm
|
15KW125rpm 380Vac PMG Test Data |
|||||
|
RPM（r/min） |
No Load Voltage （V） |
Load Voltage （V） |
Load Current (A) |
Load Power (W) |
Frequency （Hz） |
|
25 |
79.5 |
74.9 |
4.61 |
601 |
3.33 |
|
50 |
158.6 |
150 |
9.16 |
2380 |
6.67 |
|
75 |
240.1 |
225.1 |
13.42 |
5240 |
10 |
|
100 |
320.6 |
299.3 |
17.78 |
9230 |
13.33 |
|
125 |
401.7 |
385 |
22.4 |
14950 |
16.67 |
Remark: The design load electric resistance of above data is 9.7 Ω.
