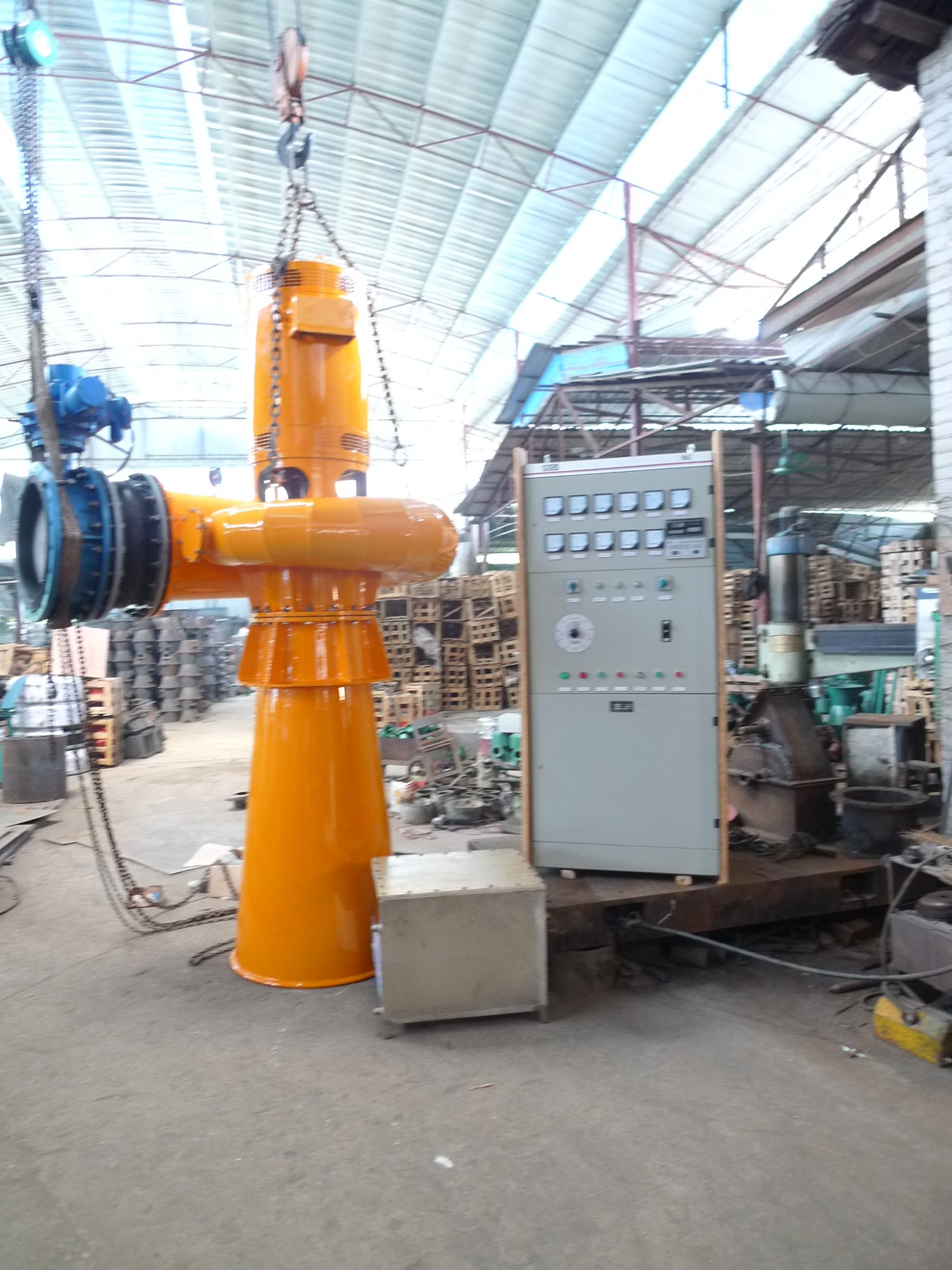

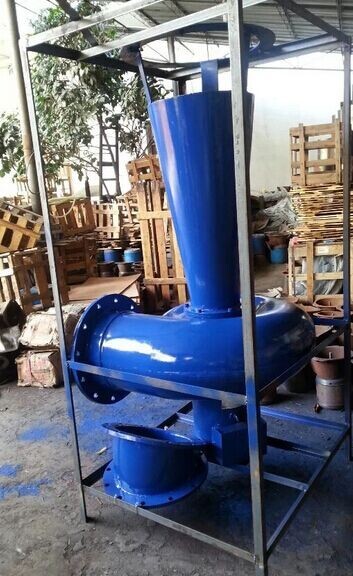

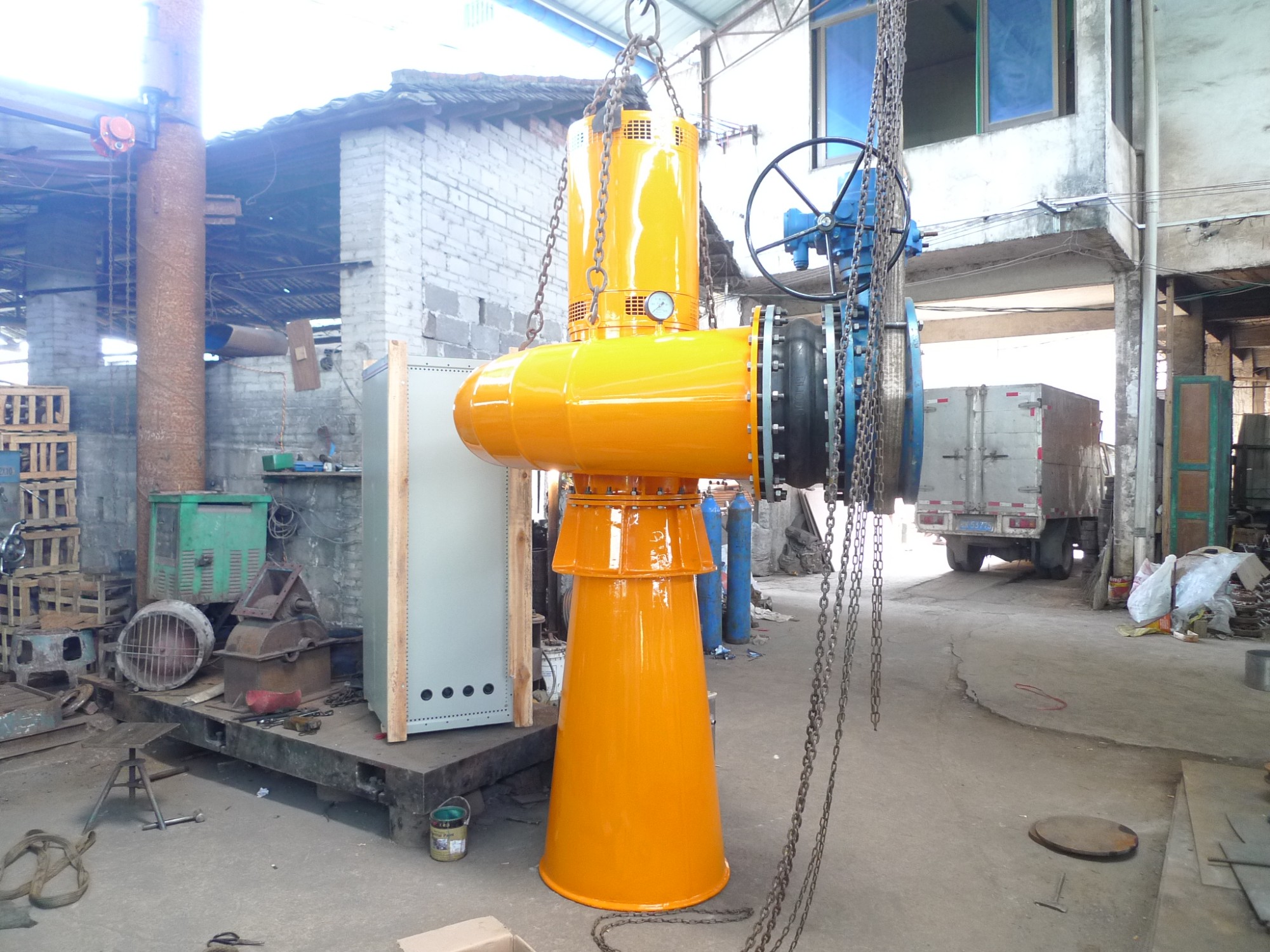

  • Volute Axial Flow Low Head Micro Hydro Power Generator Small Water Turbine Small Hydro Turbine
  • Volute Axial Flow Low Head Micro Hydro Power Generator Small Water Turbine Small Hydro Turbine
  • Volute Axial Flow Low Head Micro Hydro Power Generator Small Water Turbine Small Hydro Turbine
  • Volute Axial Flow Low Head Micro Hydro Power Generator Small Water Turbine Small Hydro Turbine
Volute Axial Flow Low Head Micro Hydro Power Generator Small Water Turbine Small Hydro Turbine Volute Axial Flow Low Head Micro Hydro Power Generator Small Water Turbine Small Hydro Turbine Volute Axial Flow Low Head Micro Hydro Power Generator Small Water Turbine Small Hydro Turbine Volute Axial Flow Low Head Micro Hydro Power Generator Small Water Turbine Small Hydro Turbine

Volute Axial Flow Low Head Micro Hydro Power Generator Small Water Turbine Small Hydro Turbine

Inquiry Send Email

Description

Micro hydro turbine system, mini hydro power system, small hydro turbine

It is applicable under low head conditions from 1.5 meters to 12 meters with large flow. This new type of machine has solved the problem that ordinary axial flow generator has long main shaft and the bearings at the impeller must be immersed into water and thus cause easy damage; The open channel of the volute chamber can not utilize the water head pressure; Work amount is large, installation period is long and cost is high; Fabrication of the volute chamber and the tail pipe is hard to reach requirements of standards etc. Volute axial flow machine is a consummate type and its efficiency and endurance are several times higher than that of ordinary axial machines

Note: 1. In case conditions of water source are limited, low rotation speed, such as 750 rpm and 500 rpm, are to be selected and thus cost will be increased. 2. Special requirements: For 60Hz frequency and 110V voltage machines, custom manufacture is needed. 3. For batch finalization of 10 KW machines, they can be designed and produced according to conditions of water sources of customers (water head and flow).
Volute Axial Flow Low Head Micro Hydro Power Generator Small Water Turbine Small Hydro Turbine
Volute Axial Flow Low Head Micro Hydro Power Generator Small Water Turbine Small Hydro TurbineVolute Axial Flow Low Head Micro Hydro Power Generator Small Water Turbine Small Hydro Turbine
Name Power (KW) Water head (M) Flow (m³/S) Rotating speed (R/M) Voltage (V) Frequency (Hz) Transmission
Volvolute axia hydro turbinewater 0.3 1.5-4 0.045-0.017 1000 220 50 Direct
0.6 2-4 0.068-0.034 1000 220 50 Direct
1.0 2.5-6 0.085-0.035 1000 220 50 Direct
1.5 2.7-8 0.114-0.0382 1000 220 50 Direct
2.0 3-10 0.128-0.0385 1000/1500 220 50 Direct
3.0 3-12 0.185-0.0464 1000/1500 220 50 Direct
5.0 3.5-15 0.251-0.0586 1000/1500 220/380 50 Direct
8.0 4-16 0.352-0.088 1000/1500 220/380 50 Direct
10 5-18 0.34-0.094 1000/1500 380 50 Direct
12 5-18 0.395_0.10 1000/1500 380 50 Direct
15 5-18 0.47_0.132 1000/1500 380 50 Direct
