Description
This series of products are suitable for high power controller of
various powers and they are widely used in temperature control and
continuous regulation of AC voltage and power. It is a
full-functional, high technical index, secure and reliable product.
GGD panel is adopted and dimensions of the cubicle are
800×600×2260mm( Wiath ×Depth× Height ). Thyristor AC Power
Controller(Controllable Silicon Voltage Regulator and Power
Controller Sector).
PARTICULAR INFO
I、MAIN PERFORMANCE AND CHARACTERISTICS ★ Every device includes one
primary circuit and two control systems and each control system
serves as the backup for the other so as to guarantee the
reliability of the device; ★ Optional manual or automatic mode; ★
Load connecting method: Y0 or △ mode; ★ Temperature control
accuracy: ≤1℃; ★ Real-time temperature detecting and on-line
temperature value setting; ★ PID calculation with on-line adjustable
parameters; ★ Fault monitoring such as quick fuse breaking,
over-current, temperature overrun of wind machine and heating
devices and pulse phase-loss; ★ Optional constant - temperature
operation and constant power operation mode; ★ Zero-crossing
triggering of controllable silicon by constant interval (KTF is set
to be periodical mode); ★ Monitoring various kinds of faults and
warning by sound, light and digital display by computer; ★ Remote
data communication system is optional in KTF power controller \ to
connect computer system and so as to implement remote monitoring and
remote setting. II、ORDER INFORMATION ◎、The following parameters are
required: Model, wiring method and quantity of capacity sensor and
thermal sensor
The rated output voltage
Three-phase 3×220V, 3×440V（the user can set it himself）
Three-phase 3×380V
Fluctuation range of the output voltage
More or less than 10% of the rated output voltage
Frequency
50Hz or 60Hz
Power of air blower
AC220V 15-65VA
Output voltage scope
0-98% of the rated voltage
Input current scope
0-105% of the rated current
Output control signal
DC 4-20mA
Applicable load
Resistive load, inductive load, transformer primary side and gas
discharge load
Start and turn-off mode
Soft start, soft turn-off, time: 2 to 3 seconds
Structural mode
Unit type below 500A, cabinet type above 500A
Constant current features
When adopting the current feedback and the control signal is
invariant, though the load changes, the output current can be stable at any
value within the scope of the rated current without change.
Current-limiting features
When the output working current is more than 105% of the rated
current, the conduction angle will be reduced automatically.
Over current protection features
When the output working current peak is more than 105% of the
rated current, the power controller cut off the output in half cycle, and
conduct self-hold. If the over current indicator light is lit, there is touch
output.
Phase-default protection features
When the output voltage lacks phase, the power controller will cut
off the output, and conduct self-hold. If the phase-default indicator light
is lit, there is touch output.
Over-heating protection features
When the air blower stops or the temperature of the radiator
exceeds 80℃, cut off the output, and there
is no power touch alarm output.
Cooling type
Natural cooling, forced air cooling
Dielectric resistance
Above 20MΩ（2500V megger）.
Dielectric voltage withstand
AC2500V,
no flashover and breakdown phenomena in one minute.
Relative humidity
At 20℃, the relative humidity is 90%,
without moisture condensation
Anti-jamming capacity
The main circuit can bear 10KV/3us impulse wave test.
Working mode
Continuous system
Storage temperature
-5～60℃
Working temperature
-5～40℃
Altitude
If it is less than 1000m, the rated value is invariant. If it is
more than 1000m, the rated value will reduce 5% per 100m
Applicable standards
GB/T3797-89 GB/T 3859
Specifications
Rated current
（A）
Rated capacity
（KVA）
Cooling type
Structural mode

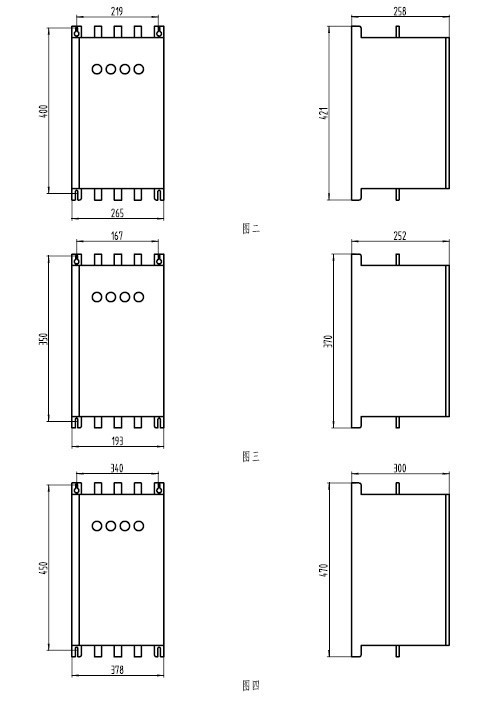

Appearance and installation dimension
Weight
（KG）
KTA1-17KVA/3×380V
25
17
Self cooling
Unit structural type
Figure Two
15
KTF2-17KVA/3×380V
Air cooling
Figure Three
10
KTA1-30KVA/3×380V
45
30
Self cooling
Figure Two
15
KTF2-30KVA/3×380V
Air cooling
Figure Three
10
KTF1-39KVA/3×380V
60
39
Forced air cooling
Figure Two
15
KTF2-39KVA/3×380V
Figure Three
10
KTF1-52KVA/3×380V
80
52
Figure Two
15
KTF2-52KVA/3×380V
Figure Three
10
KTF1-62KVA/3×380V
100
62
Figure Two
15
KTF2-62KVA/3×380V
Figure Three
10
KTF1-75KVA/3×380V
113
75
Figure Two
15
KTF2-75KVA/3×380V
Figure Three
10
KTF1-85KVA/3×380V
130
85
Figure Two
15
KTF2-85KVA/3×380V
Figure Three
10
KTF1-105KVA/3×380V
160
105
Figure Two
18
KTF2-105KVA/3×380V
Figure Three
10
KTF1-120KVA/3×380V
180
120
Figure Two
18
KTF2-120KVA/3×380V
Figure Three
10
KTF1-131KVA/3×380V
200
131
Figure Two
18
KTF1-164KVA/3×380V
250
164
KTF1-197KVA/3×380V
300
197
KTF1-217KVA/3×380V
330
217
KTF1-262KVA/3×380V
400
262
Figure Four
35
KTF1-328KVA/3×380V
500
328
Above KTF1-328KVA/3×380V
Above 500A
Above 328KVA
Air cooling
Water cooling
Cabinet type
