Description
We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), speed from 30rpm to 10000rpm ,voltage,shaft, frequency,power ,speed all can customize, please contact us for more detail informations.
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetim

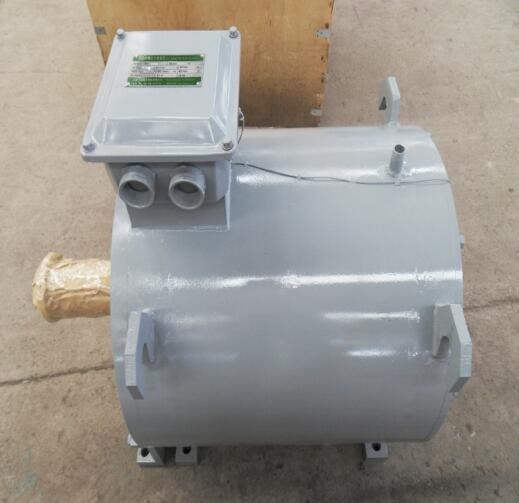

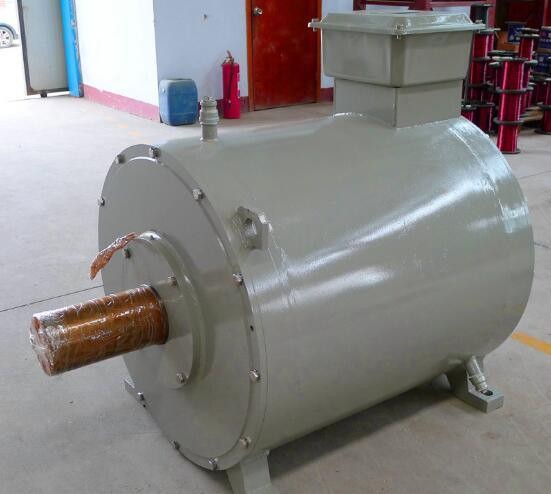

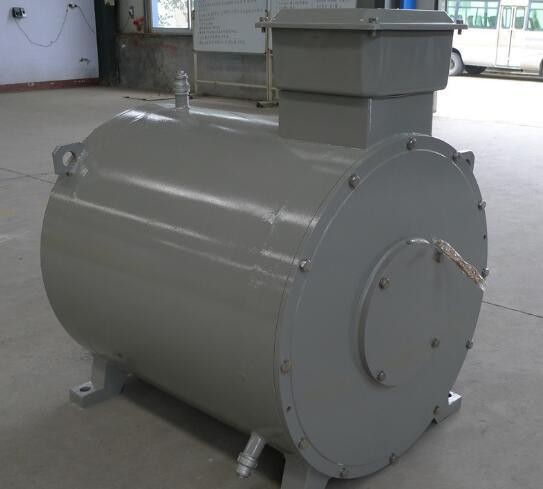

1000kw1500rpm3300V50Hz PMG
Technical Parameters
No. Parameter Units Data
1 Rated output power KW 1000
2 Rated speed RPM 1500
3 Rated output voltage VAC 3300
4 Rated current A 175
5 Rated frequency HZ 50
6 Poles 4
7 Efficiency at rated speed >96.5%
8 Winding type Y
9 Insulation H class
10 Rated torque Nm 6662
11 Start torque Nm <160
Temperature rise °C 90
12 Max.working temperature °C 130
13 Bearing SKF
14 Weight Kg 2000
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetim
1000kw1500rpm3300V50Hz PMG
Technical Parameters
No. Parameter Units Data
1 Rated output power KW 1000
2 Rated speed RPM 1500
3 Rated output voltage VAC 3300
4 Rated current A 175
5 Rated frequency HZ 50
6 Poles 4
7 Efficiency at rated speed >96.5%
8 Winding type Y
9 Insulation H class
10 Rated torque Nm 6662
11 Start torque Nm <160
Temperature rise °C 90
12 Max.working temperature °C 130
13 Bearing SKF
14 Weight Kg 2000
